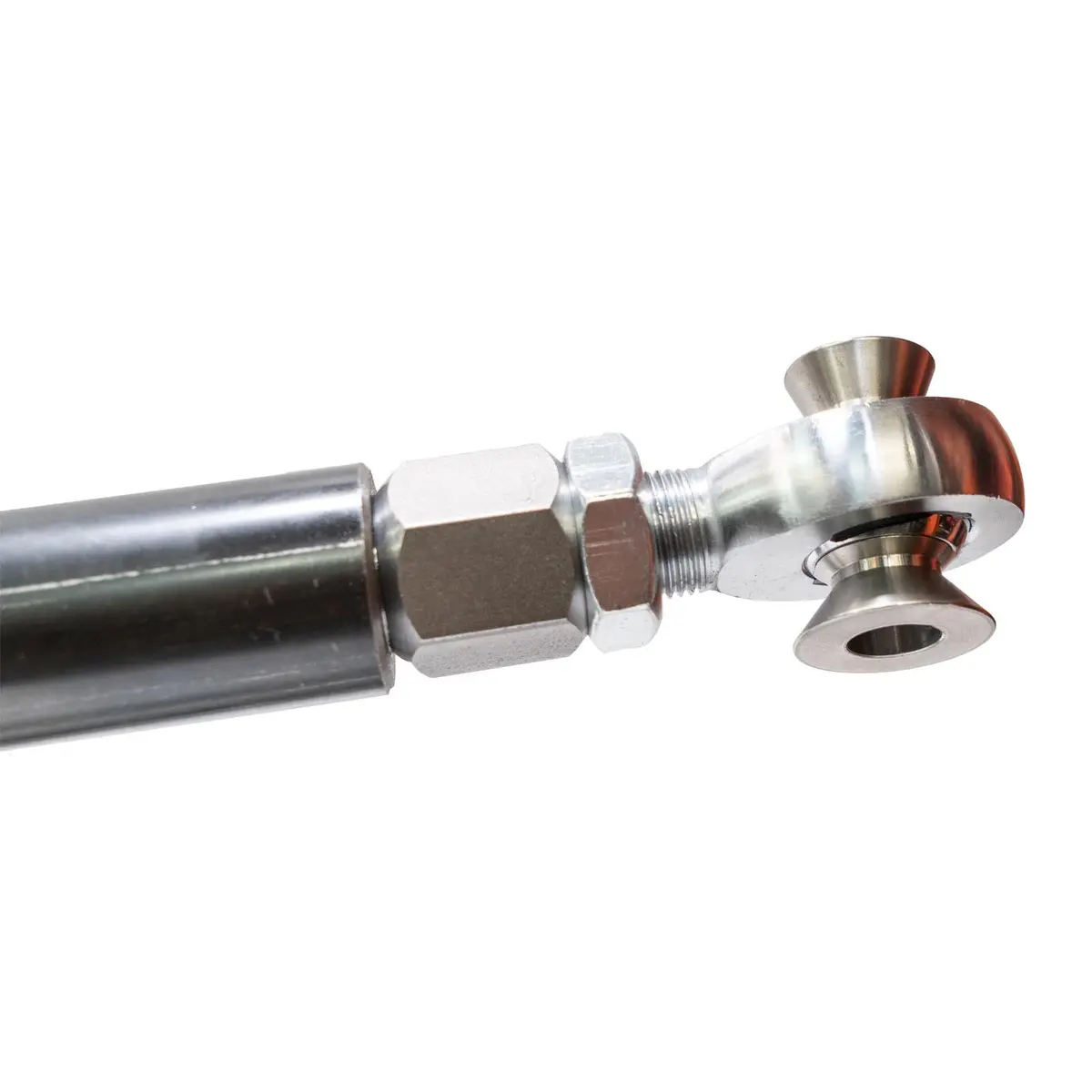

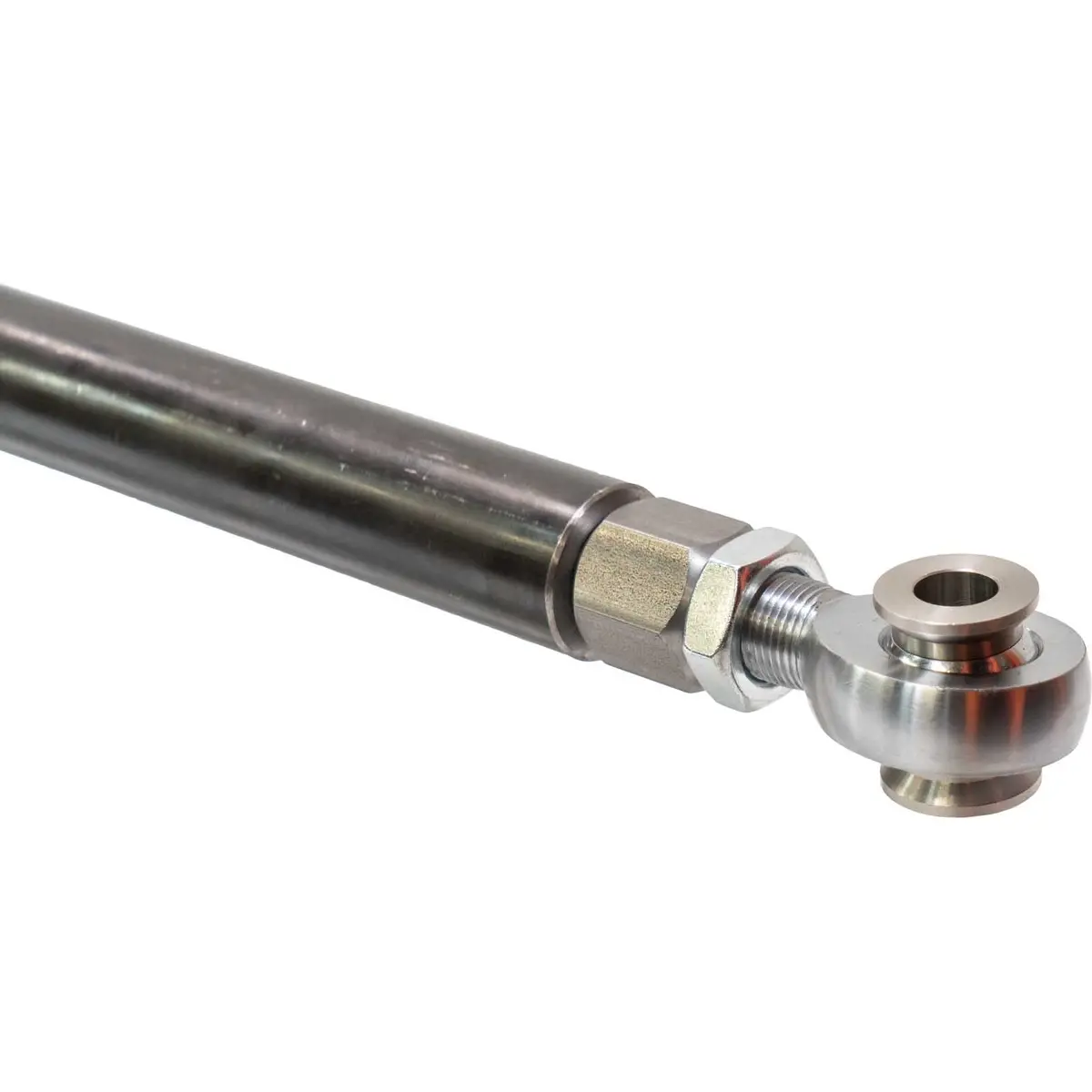

DIY 7/8-Inch Heim Joint Tie Rod and Drag Link Assembly

Description

• DIY 7/8″ Heim Tie Rod / Drag Link
• KIT INCLUDES:

• 1–55″ of 1.5″ X .25″ wall DOM tubing
• 2–7/8″ Heat Treated Chromoly Heims
• 2–7/8″ Hex Tube Adapters (1″ Tube ID)
• 2–7/8″ Jam Nuts
• 4–Heim Misalignments 7/8-3/4 for a 1 5/8″(narrows) mounting width

This is just what the doctor ordered when you just jammed a rock with the stock 1/16″ thick tie rod or a solid tie rod. These are 1.5″ in diameter and .25″ thick and can take a hit over and over again so do it right the first time with something serious from FarFromStock.
You will need to drill your arms to a 3/4″ hole to use this kit.

This is a do it yourself style kit that requires welding by a competent person with the right equipment, don’t skimp, do it right! You will need to check clearances with the steering at lock to see if you need to add any bends before you cut it down to clear diff covers, sway bar mounts, etc
