Heavy-Duty Torsion Sway Bar Mounting Kit – Optimized for High-Clearance Applications

Description

Includes:

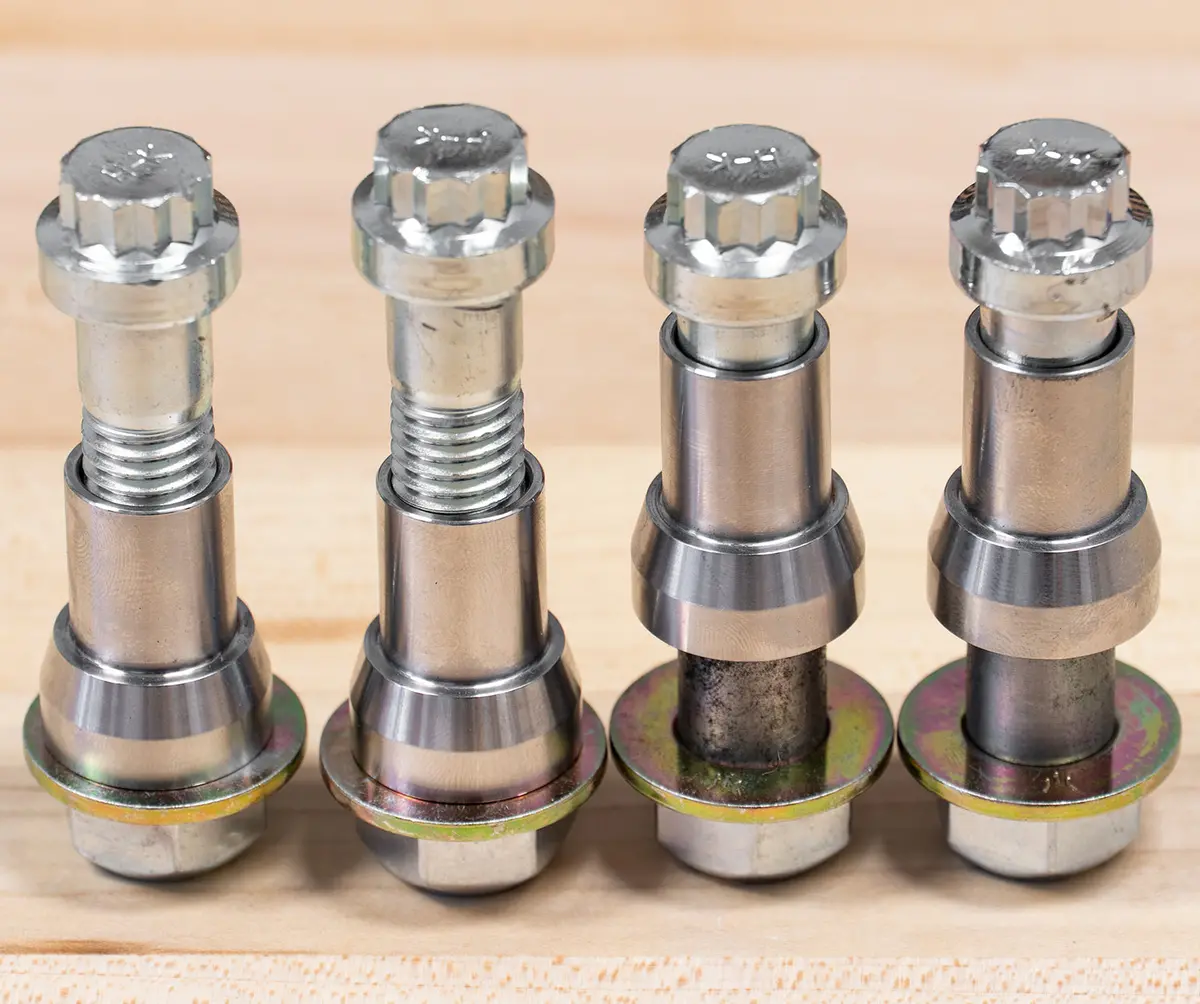

– (Qty. 4) 1/2″-13 x 2.5″ Flange Head 12pt Cap Screws, Zinc
– (Qty. 4) Carli Stainless Low-Profile Misalignment Spacers
– (Qty. 4) 1/2″ SAE Washers
– (Qty. 4) 1/2″ Top-Lock Nut
– (Qty. 2) Reducer Sleeves for Axle Mount

First thing, take pictures of your exiting end-link setup. These will install in exactly the same configuration as the old hardware.

The Hardware kit will add 1/4″ additional clearance to your Carli Sway bar equipped with the grade-8 bolt and 2 misalignment spacers. This configuration can be identified as follows:

The new Hardware configuration utilizes a 1-piece, stainless steel misalignment that installs to the inside of the sway bar link. This spacer will face the sway bar on the upper side and the axle-mount on the lower. On the opposite side, you’ll find ONLY the head of the provided 12-point bolt.

The main hardware that differentiates this kit from the original hardware is the 12-point and low-profile misalignments.

Place the provided misalignment spacer to the INSIDE of the link. The “sleeve” portion of the spacer will travel all the way across the internal diameter of the heim joint and will be visible on the opposite side.

Torque this assembly to 60lb/ft to complete the installation.
