Description

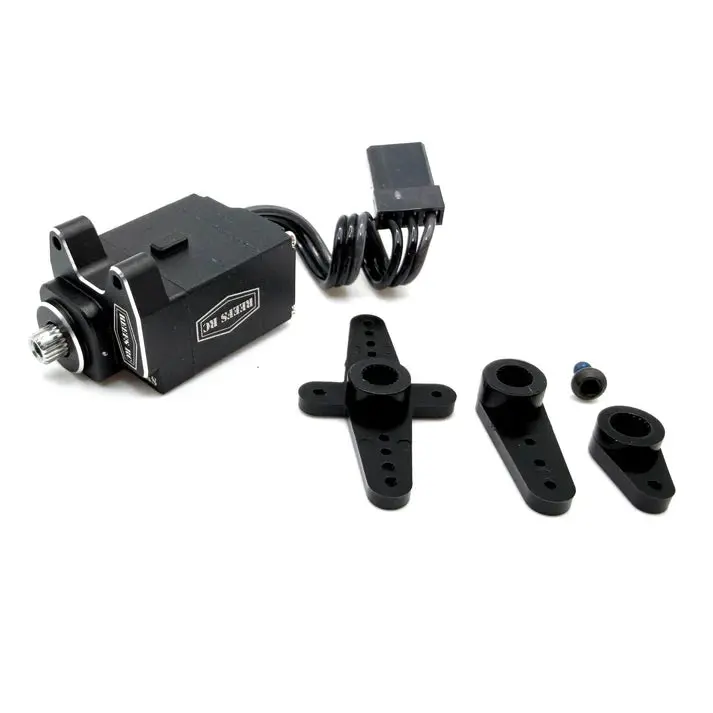

SX30 Sub Micro Hi-Torque Servo for the Axial SCX30
Built with all-metal gears and twice the weight of the stock servo, it adds valuable low front-end weight, helping improve weight bias and stability on these lightweight rigs. Each servo includes three different lengths of black nylon servo arms. For those looking to upgrade, it’s also compatible with the REEFS286 aluminum servo horn with stainless steel pivot ball (pivot ball pre-installed and ready to run).
Installation is quick and easy – only seven screws need to be removed and replaced, so you can be up and running in minutes with increased torque and added weight to improve your SCX30’s performance.
Features:
- High Torque
- Military Grade Construction
- Pulse Width Modulation Control
- SMART Chip Technology
- Programable with REEFS Optional “LINK V2” (Optional)
- High Torque
- Military Grade Construction
- Pulse Width Modulation Control
- SMART Chip Technology
- Programable with REEFS Optional “LINK V2” (Optional)
Specifications:
- Water Resistant
- Voltage: 4.8v – 8.4v
- Internal: Metal Gears
- CNC Aluminum Casing
- Sealed Bearing
- Temp Rate: -15C deg ~ +70C
- Operating Travel: 180 deg +/- 10 deg
- Mechanical Angle: No Limit
- Motor Drive: IC Drive
- Weight: .29oz / 8.2g
- (LWH): 24.4 x 15.2 x 11.1mm (case only)
- Torque: 35oz (2.5kg) @ 6.0v / 39oz (2.8kg) @ 7.4v / 42oz (3.0kg) @ 8.4v
- Speed: .075 sec @ 6.0v / .066 sec @ 7.4v / .06 sec @ 8.4v
- Spline: 20T D:4.0mm
- Dead Band Width: 2uSec
- BEC Not Required, Recommended for Max Perf.
- Unload Current: 120mA@4.8V / 150mA@6.0V / 200mA@7.4V / 230mA@8.4V
- Loading Current: 800mA@4.8V / 1000mA@6.0V / 1200mA@7.4V / 1400mA@8.4V
